1、TX module

2、RX module



Connector

Connecter Description

TX module 1、Black doubling wire          —DC(200mA)output to reverse camera

2、Red/Black doubling wire      —DC9-36V power input

3、Yellow RCA Jack male on wire  —Video input(From reverse camera)

RX module 1、Black doubling wire           —DC(300mA)output to Monitor

2、Red/Black doubling wire       —DC9-36V power input

3、Yellow RCA Jack male on wire   —Video output to Monitor or DVD

4、Blue wire   —Trigger wire to notify if Monitor or DVD video comes or not

Installation

1、Connect TX module (DC9-36V power input)to reverse light power.

If user connects the ground of TX module to the metal parts of car body, please clean the metal parts of car body first. because dust or mud Which on car body will generate the interference to the video transmission.

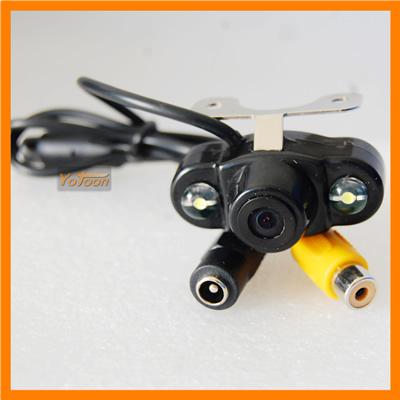

2、Connect TX module (DC 12V output) to reverse camera.

3、Connect reverse camera video output to TX module video input.

4、Connect RX module power to the reverse line on vehicle. please install one wire from the vehicle’s transmission of reverse Switch to connect the RX module power.

5、Connect RX module (Yellow RCA) video output to car Monitor or DVD.

Connect RX module (DC 12V output) to car monitor if car DVD or no
