Detailed Product Description |

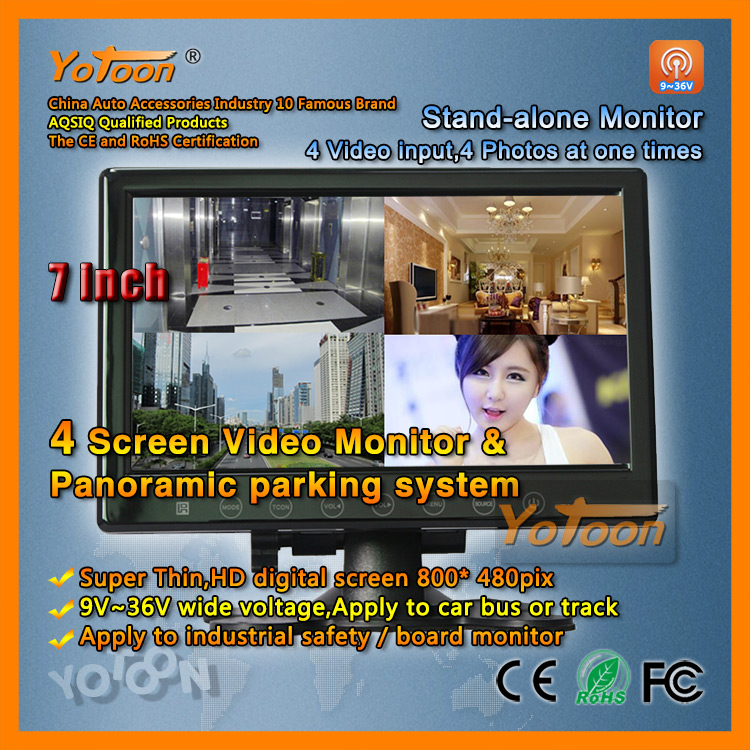

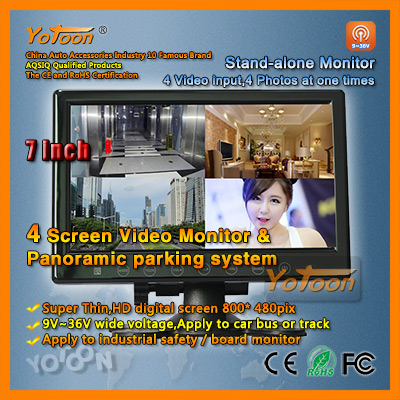

 7 inch car monitor / 4 screen video monitor / Panoramic parking system / car security system
7-inch four-screen LCD monitor
1 Display size: 7.0 inches 16: 9TFT-LCD
2 Best Resolution: 800 * 480
3 Contrast: 400: 1
4 Brightness: 250cd / ㎡
5 overall response time: <= 12ms
6 :( viewing angle Horizontal: 160 degrees / Vertical: 160 degrees)
7 refresh rate: 60-75Hz
8 using CPT LED LCD screen.
9 Color System: PAL NTSC.
10. backlight: LED.
11 Dimensions: 180125X28MM.
12 Menu Language: English Optional.
Optional features: Quad Video
◇ signal input interface: BNC1 / BNC2 / BNC3 / BNC4
Image rotation: support
Power Supply: DC 12V ~ 36V (trolley carts can be used)
Purpose: safety monitoring system monitor display industrial display monitor car monitor microscope
All products using industrial-grade display production, life of more than 10 years
7 inch car monitor display four split
Product details:
1 supports 4 camera input four view selection
2.7 kinds of languages OSD display
3. PAL / NTSC standard optional mirror / normal image optional
4 When reverse gear is engaged automatically open
5 Trigger priority: CAM CAM 1> 2 of> CAM3> CAM 4
6, with the high and low voltage protection and short circuit protection
7.7 inches TFT LCD display, 16: 9
8 wide viewing angle (CR> 10) :( Up / Down / Left / Right): 40/40/60/60
9 Resolution: 480 * RGB * 234
10. Color System: PAL / NTSC (optional)
11 Power requirements: 12 ~ 36V DC
12 Power consumption: ≤5W
13 Working temperature: -20 ℃ to 70 ℃
14 Storage temperature: -30 ℃ to 80 ℃ |
